John Deere Hxe24180 Oem M20 Flange Lock Nut

Description

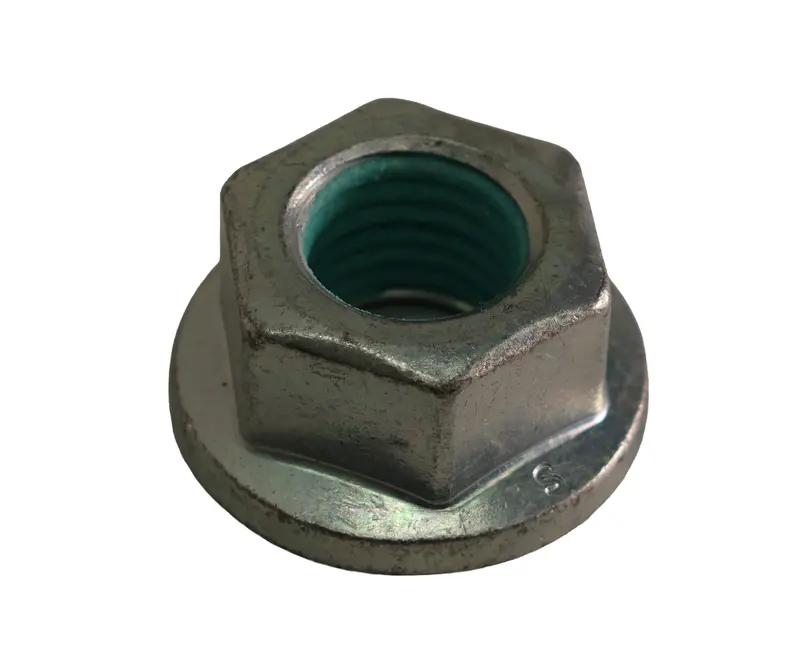

John Deere Original Equipment M20 Flange Nut – HXE24180

M20 Spherical Collar Nut

Part Specifications:
Thread Size (MM) 20.0000
Thread Pitch (MM) 2.5000
Thickness (MM) 20.0000
Across Flats (MM) 30.0000
Flange Diameter (MM) 40.5000
Material Grade (ALPHA) 10
Finish (ALPHA) B-Zinc-Electro Plated
Note (A) There is more information on the engineering blueprint that is not shown in detail here.

Fits the following John Deere models:
Corn Head: 600 (S.N. 745101-), 606C (S.N. 745101-), 606 (S.N. 745101-), 608C (S.N. 745101-), 608 (S.N. 745101-), 612C (S.N. 745101-), 612 (S.N. 745101-), 608FC, 612FC, 616C, 616, 618C, 618, 706C, 708C, 708FC, 712C, 712FC, 716C, 718C, C12F, C12R, C16F, C16R, C18F, C18R, C6R, C8F, C8R, CF12 (S.N. 835001-), CF16 (S.N. 835001-), CF18 (S.N. 835001-), CF8 (S.N. 835001-), CR12 (S.N. 835001-), CR16 (S.N. 835001-), CR18 (S.N. 835001-), CR6 (S.N. 835001-), CR8 (S.N. 835001-).
Platform (Cutting) Combine: BP15 (S.N. 815001-835000)

This is an O.E.M. John Deere part.
